🧠 Electrochromic Smart Glass: Windows That Tint Automatically

Tools & Gadgets
1

electrochromic-smart-glass

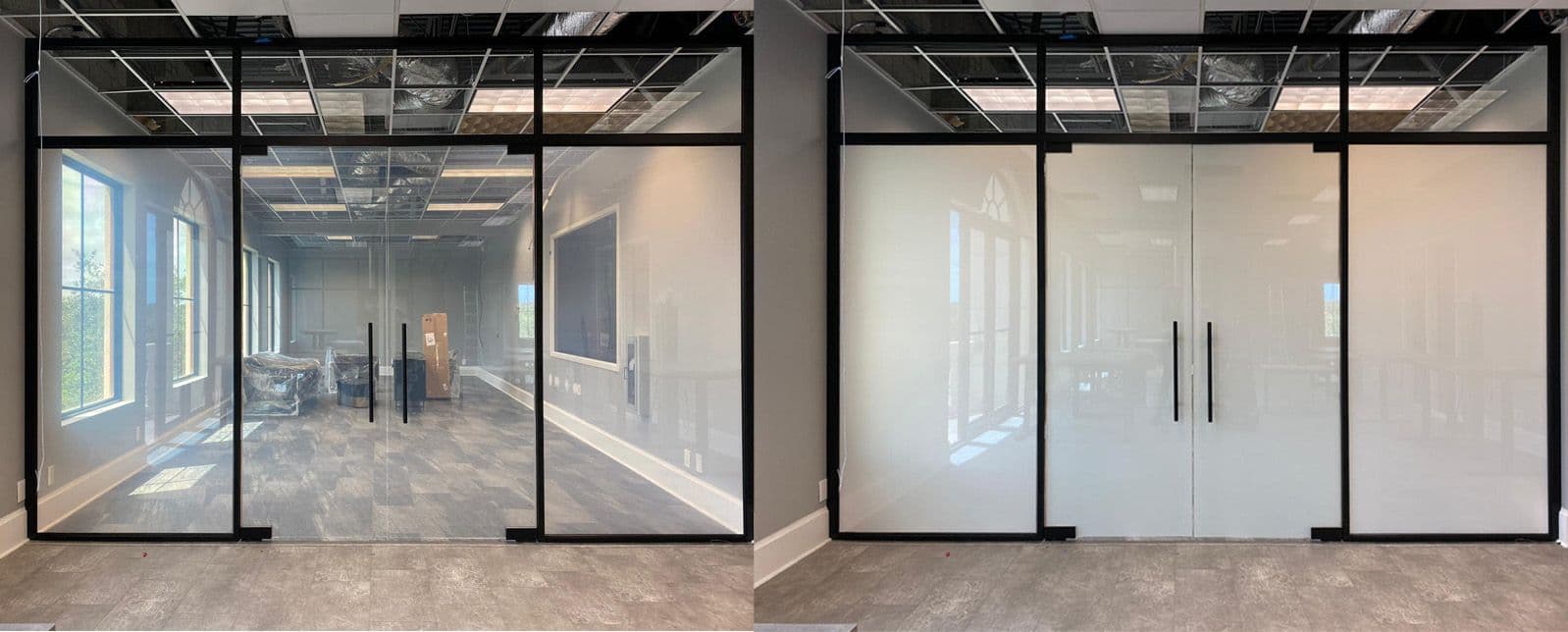

electrochromic-smart-glass1598×644 105 KB

:hammer_and_wrench: What Is It?

Electrochromic smart glass is a new type of window glass that changes tint based on light, heat, or user control.
It helps reduce glare, block heat, and protect privacy — all without blinds or curtains.

This isn’t science fiction — it’s real tech, just not yet common in most homes.

:thinking: Why It Matters

Regular windows let in too much heat during hot days and lose warmth during cold nights, causing higher energy bills.
Smart glass adapts in real time, reducing energy usage and improving comfort.

It replaces the need for:

  • Curtains or blinds
  • External shading systems
  • Window films

:gear: How Does It Work?

Smart glass contains a thin layer of electrochromic materials (often tungsten oxide) between panes of glass.
When voltage is applied, it changes how much light or heat passes through.

It can be:

  • Manually controlled via switch or app
  • Automatically triggered by sunlight or room temperature

:glowing_star: Key Benefits

  • Energy cuts – real‑world studies log total‑building savings up to 23 % when electrochromic (EC) glass replaces conventional glazing. MDPI
  • Peak‑load shaving lets designers downsize HVAC equipment.
  • Occupant comfort: balanced daylight, reduced glare, and UV filtering that slows furniture fade.
  • Incentives: the U.S. Inflation Reduction Act grants a 30 % federal tax credit for smart‑glass installs, slashing payback times. Axios

:light_bulb: Typical Energy Savings by Building Type

  • Single‑family homes: 1 – 5 % annual energy reduction, depending on climate and window‑to‑wall ratio. ScienceDirect
  • Small & mid‑size offices: 7 – 16 % primary‑energy savings versus today’s low‑e double glass. ScienceDirect

:money_bag: Cost & ROI (2025)

Product Typical installed cost ($/ft²)*
Electrochromic smart glass panel $60 – $100 Home Advisor
Switchable film retrofit $25 – $55 HomeGuide

*Large projects and bulk orders trend toward the low end of each range.

Because windows last 20 – 30 years, a full ROI analysis should fold in local utility rebates and, in the U.S., the 30 % IRA tax credit noted above.

:building_construction: Installation & Control Workflow

  1. Remove old IGUs and set factory‑sealed EC IGUs in standard framing.
  2. Low‑voltage cabling runs to a control hub; glass only draws power while switching tint (≈0.1 W/ft²).
  3. Integrate with smart‑home or building‑management platforms (Matter, KNX, BACnet, etc.).
  4. Sensors & logic: pair irradiance, interior lux, and thermostat data to automate tint schedules.
  5. Commission comfort set‑points and façade‑specific rules (e.g., east façade clears at 3 p.m.).

:office_building: Who’s Already Using It?

  • View Inc. – LaGuardia Terminal B, Google campuses, multiple hospitals.
  • SageGlass (Saint‑Gobain) – Microsoft HQ, the Kauffman Center for the Performing Arts.
  • Halio – premium office towers in San Francisco and NYC.

These owners report smaller chiller sizes, higher LEED scores, and noticeably happier occupants.

:construction: Limitations & Gotchas

Challenge Mitigation
Up‑front cost still steep vs. low‑e glass Tap tax credits, utility rebates, bulk ordering
Tint speed (1‑10 min full‑range) Next‑gen chemistries target < 30 s
Color shift—some EC layers look blue‑gray Neutral‑gray formulations now shipping
Retrofit wiring in existing frames Film‑based PDLC/SPD options avoid hard wiring

:crystal_ball: The Road Ahead

  • Fast‑switch (<1 s) materials using metal–organic frameworks and nanocomposites.
  • Spectrum‑tunable daylighting to support circadian rhythm control.
  • PV‑hybrid smart glass that shades and generates power.
  • Analysts forecast sub‑$40/ft² pricing by 2030 as manufacturing scales and codes tighten on glazing performance.

:chequered_flag: Bottom Line

Electrochromic smart glass is no longer a lab curiosity. It delivers measurable HVAC savings, daylight comfort, and newfound design freedom by making blinds and external shades optional. The price tag is the main barrier—but incentives and rapidly falling costs mean the technology is edging into mainstream window‑replacement budgets. Planning a remodel or new build? Run the numbers: your cooling system (and electricity bill) might thank you.

Questions? Drop them below and let’s geek out on smart windows! :window::high_voltage:
