Transparent Cellulose Aerogel?
This advanced material is a highly porous, plant derived aerogel made from cellulose fibers (wood pulp). Scientists have engineered it through silanization to be nearly 99% transparent, while also offering exceptional thermal insulation performance. With approximately 97 to 98% porosity, the microscopic structure allows visible light to pass with minimal diffusion yet severely limits heat transfer, acting like both a window and a thermal barrier.
Why Does It Matter?
- Dual Light & Insulation
Unlike conventional glass, this aerogel glazing can flood a room with natural light without sacrificing energy efficiency. It keeps interiors warm in winter and rejects heat in summer, ideal for climates that swing markedly between seasons.
- Plant Based & Sustainable
Made from wood pulp, it’s a bio based, renewable alternative to petrochemical insulators and heavily embodied glass systems. The manufacturing process has a markedly lower carbon footprint, aligning with green building standards.
- Retrofit Friendly for Older Homes
For historic or older buildings where adding wall insulation is difficult or where window replacement options are limited, cellulose aerogel panels could offer a high performance upgrade with minimal footprint change.
- Resilience & Comfort
It enhances indoor comfort by reducing drafts, thermal bridging, and cold spots, key for passive house designs, thermal upgrades, and net zero retrofits.
Where the Technology Stands Today

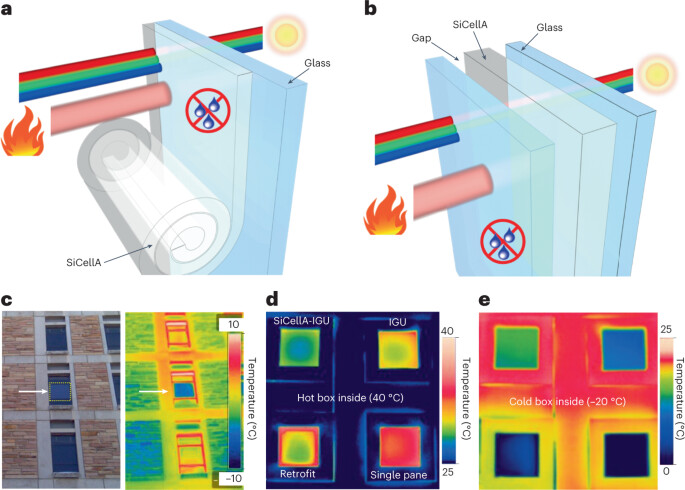

The breakthrough was published recently in Nature Energy (April 2023), highlighting that academic labs have already demonstrated transparent samples of silanized cellulose aerogel with lab scale glazing prototypes.
However, commercial products are not yet widely available for mainstream renovation markets.
The material faces challenges around scale up, cost, manufacturing durability, and integration into existing glazing systems.
How It Works — At a Glance
Feature
-
How It’s Achieved
-
High transparency
-
Ultrafine pores smaller than visible light wavelengths → minimal scattering
-
Thermal insulation
-
Very low solid conduction due to 97% air porosity
-
Sustainability
-
Made from cellulose fibers derived from wood pulp
-
Light weight
-
Ultra light compared to glass or polycarbonate
-
Retrofit adaptability
-Can be cut or laminated into panel units or sandwich glazing
Potential Applications in Home Renovation
High performance windows: Replace poor single glazed panels in existing window frames or create light diffusing skylights while reducing heat loss or gain.
Interior partitions: Use aerogel glazing between rooms to allow daylight flow without compromising thermal zoning.
Conservatories & sunrooms: Capture daylight while keeping space temperature efficient year round.
Heritage windows: Improve energy performance without altering historical frame profiles or appearances.
Why Now?
Global pressure for energy retrofits, passive house standards, and net zero carbon buildings is driving innovative material development. Technologies like transparent cellulose aerogel could help existing homes meet these goals, especially in regions like Europe where insulation upgrades are mandated.
Challenges & Next Steps
Cost reduction & scaling: Lab prototypes cost far more than glass; commercial viability hinges on manufacturing economies.
Durability & weather resistance: Long term testing for UV exposure, moisture cycling, mechanical strength is needed.
Code compliance & certification: Building codes and glazing standards currently have no provisions for this novel material.
Integration logistics: Methods to retrofit or replace existing glazing with aerogel panels in standard frames are still under development.
Why It’s Worth Watching
Transparent cellulose aerogel strikes a rare balance: it brings natural daylighting and top tier insulation together in one bio based product. For energy conscious homeowners and renovators seeking elegant, sustainable solutions, particularly in moderate to extreme climates, it represents the next frontier of glazing technology.
Keep an eye on pilot installations and commercial launches over the next 2 to 3 years, it may soon shift from lab curiosity to home renovation game changer
